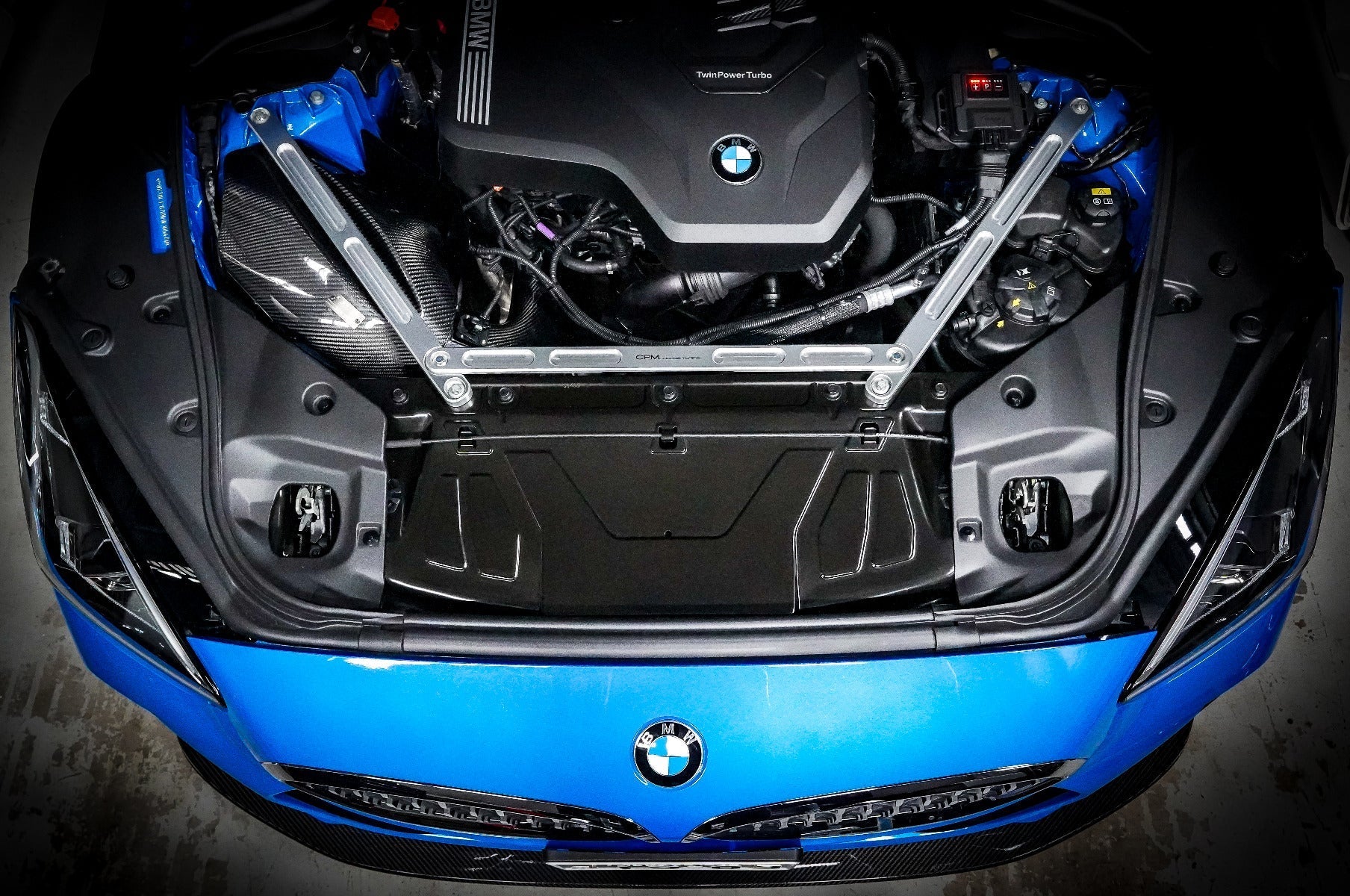

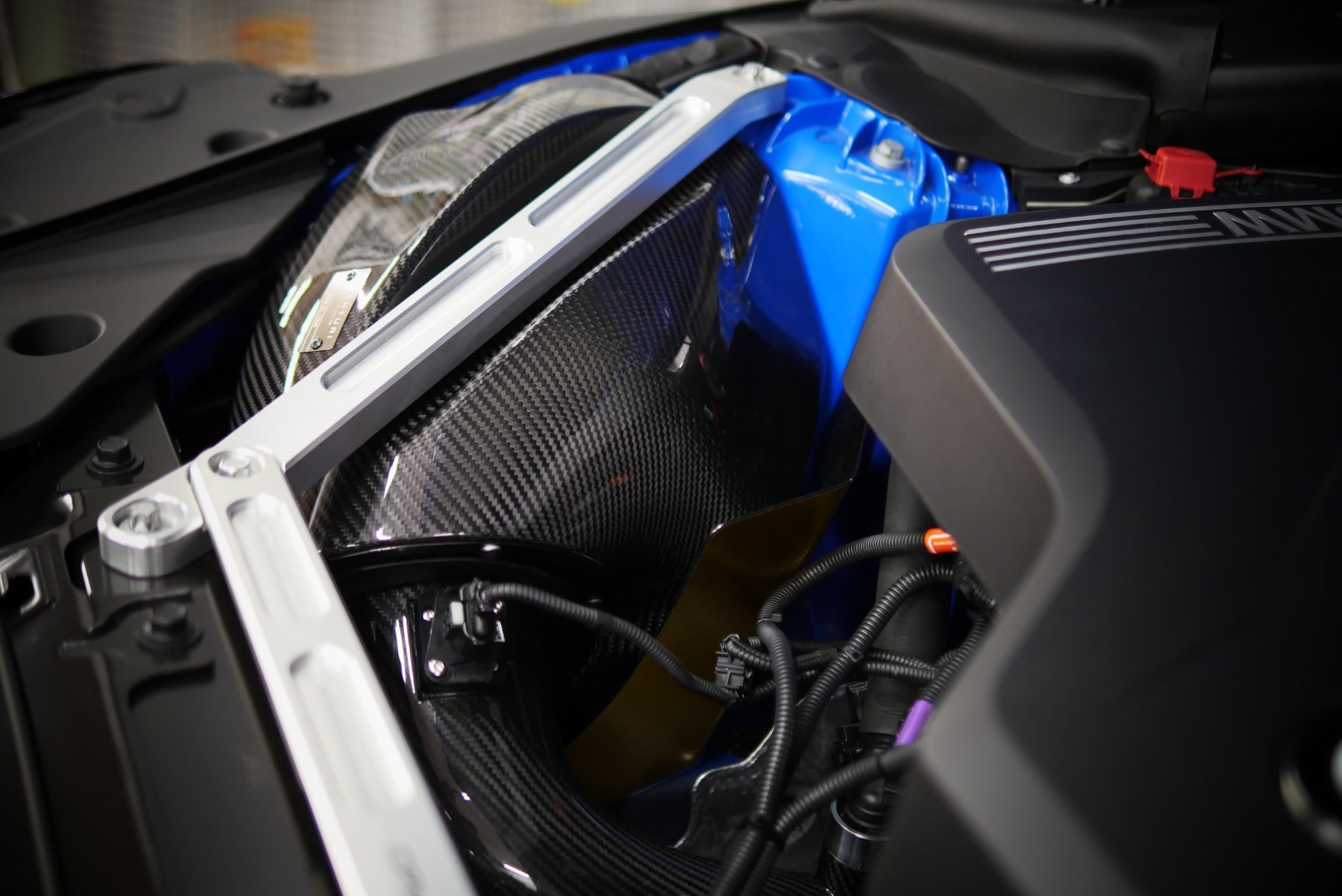

Engineered for the BMW G29 Z4 2.0 B48 platform, this intake system provides a less restrictive route for airflow while keeping intake temperatures down. Because the intake sits near the exhaust manifold, it is vulnerable to engine bay heat soak; to combat this, the kit utilizes a fully sealed airbox combined with a gold reflective backing to block radiant heat transfer. To overcome the airflow constraints typically found in sealed designs, an extra feed was integrated utilizing an opening near the wheel arch.
The airbox is built as large as possible to maximize internal volume while leaving clearance for potential strut braces. The factory convoluted tubing is swapped out for a smooth carbon inlet tube that starts at an inner diameter of 111 mm (4.4 inches) and tapers down toward the turbo. Additionally, the kit includes an ISO-tested, custom high-flow dry filter providing an expanded surface area compared to stock components. Fabricated entirely from 100% prepreg carbon fiber without any fiberglass, the system maintains a clean internal boundary layer for smoother airflow.
Kit Includes
- Carbon Fiber Airbox with Dual Feeds
- Bespoke High Flow Dry Cone Filter
- Carbon Fiber Inlet Tube with 111 mm opening ID
- CNC Machined Temperature Sensor Mount
- CNC Machined Breather Adapter
- Heat Shield with Gold Reflective Backing
- Laser Cut Stainless Steel Brackets
- Silicon Coupler with OEM Specification Clamps
Benefits
- Fully sealed airbox layout featuring gold reflective heat shielding to minimize exhaust manifold heat soak.
- Incorporates a secondary wheel arch feed to ensure high airflow volume.
- Substitutes the restrictive factory hose with a smooth, large-capacity carbon tube starting at a 111 mm inner diameter.
- Built from 100% prepreg carbon fiber with zero fiberglass content for an optimized internal finish.
Upgrade your vehicle's thermal protection and airflow performance. Purchase your BMW G29 Z4 2.0 B48 carbon intake through Racebox today, supported by safe worldwide delivery straight to your door.
Specification Details
Product Code | EVE-G29Z4-B48-INT
Brand | Eventuri
Material | 100% Prepreg Carbon Fibre
Finish | Gloss Carbon Fibre Weave
Fitment | BMW G29 Z4 2.0 B48
Installation | Professional Installation Recommended
Distributed by | Racebox
