CANchecked MFD32 Gen2 for BMW 5-series G30/31/38 F90 LHD

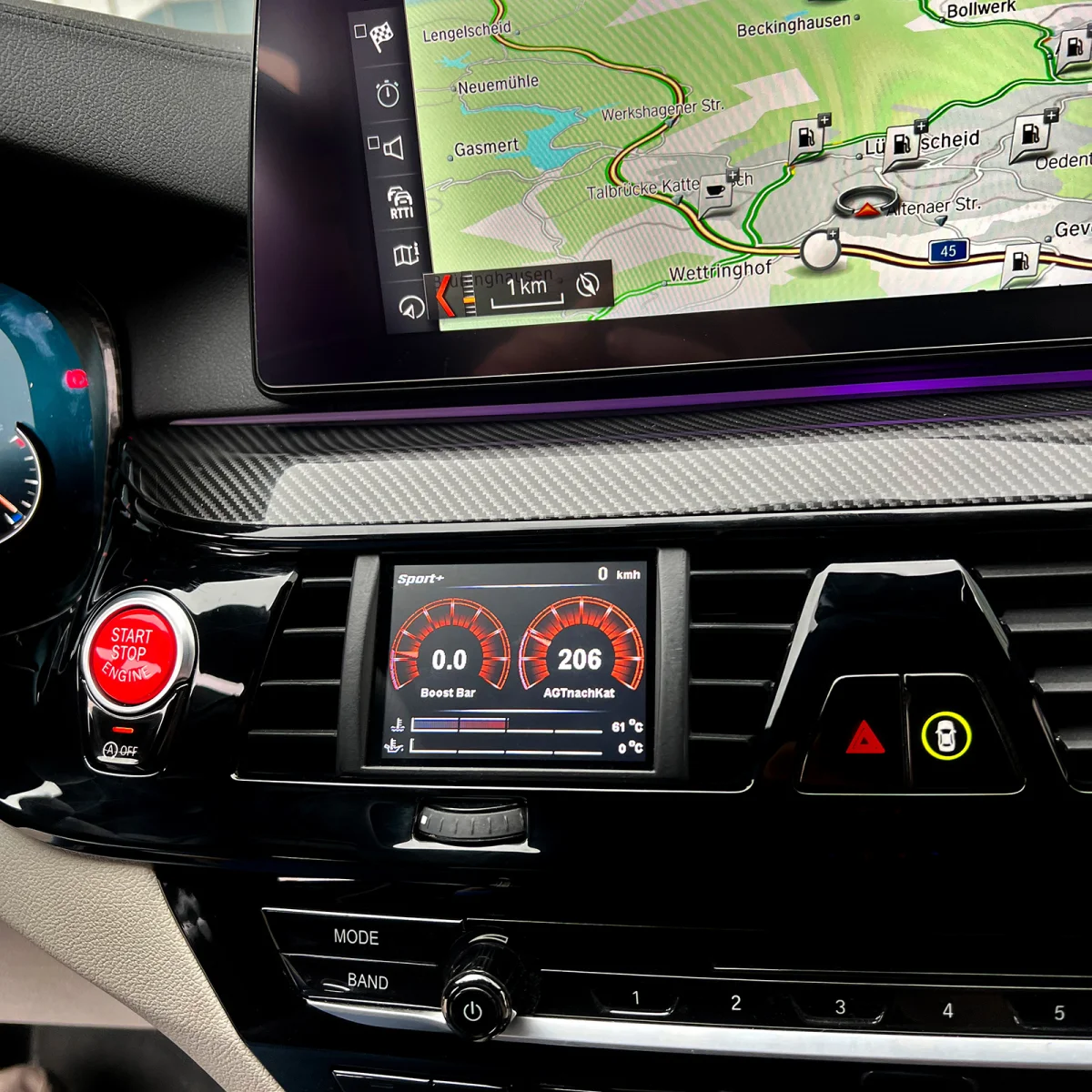

The vehicle-specific CANchecked MFD32 Gen2 for your BMW 5-series G30/G31/G38/F90 - perfectly integrated and all data always in view

The MFD32 Gen2 transforms your air vent into an intelligent display with features you don't want to miss. Our displays are designed so that they can be installed by anyone. For most displays there are illustrated installation instructions, so you can install your display yourself without the need of any workshop.

Key Features

Perfect integration: The vehicle-specific bezel still allows airflow past the display
Can Bus: Readout of in-depth vehicle data such as manufacturer diagnostic tools
Gear display: Directly via Can Bus or calculated from speed and rpm
Touchscreen: Navigate through pages using intuitive swipe gestures
Customization: Design your own pages, add your own pictures or start animation
Additional inputs: Connect up to 4 analog inputs and an ethanol sensor directly to the display
Can Switching: Use your display as a keypad and send your own can messages to the bus
Customizable Alarms: Customizable alarms can be easily configured and activated. For example, get a big warning message when the exhaust gas temperature is above 900 degrees
Logging: Log and save your data to the internal SD card for later analysis.

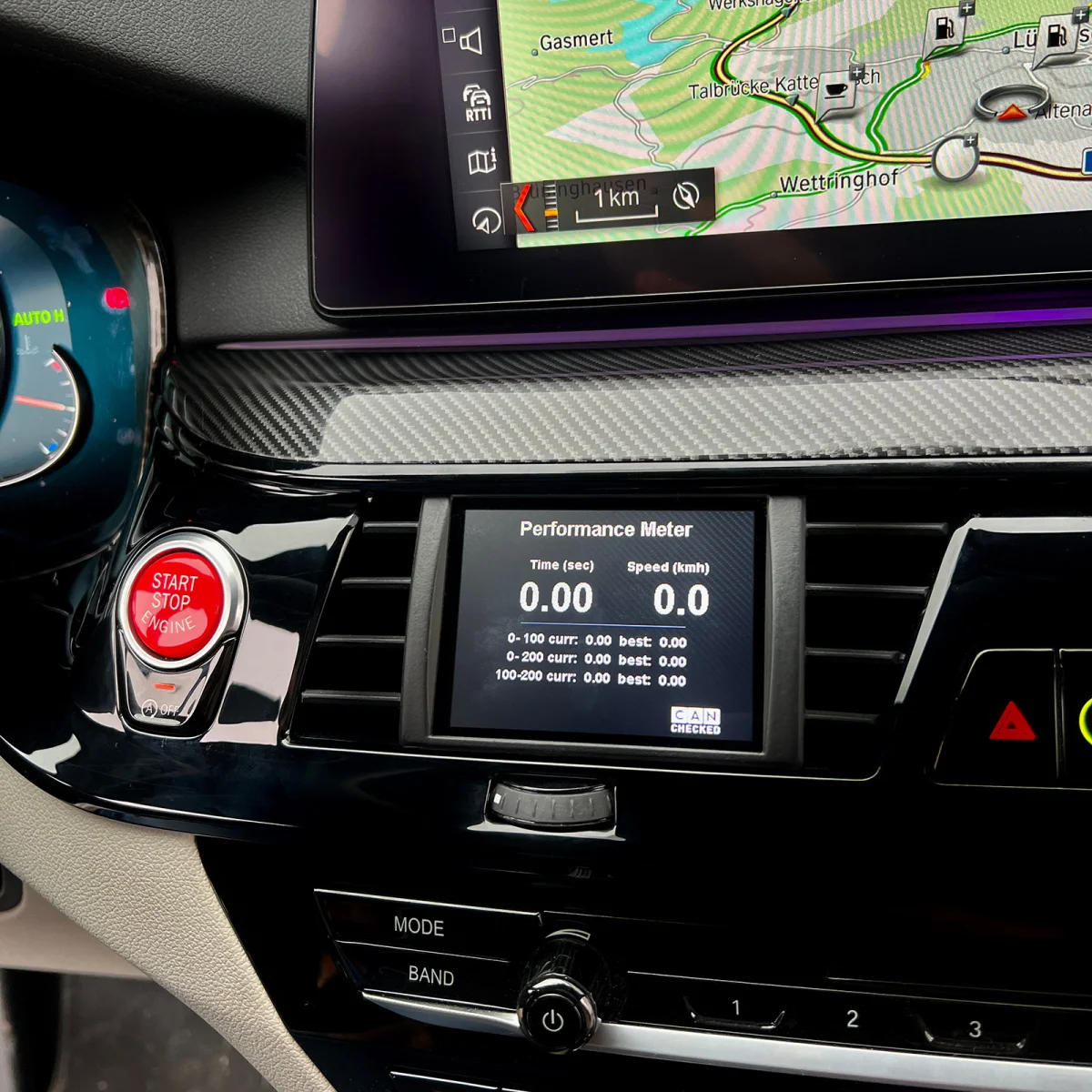

Performance Meter: Measure your 0-100, 100-200 and 0-200 times with the integrated performance meter without any additional hardware.
DTC*: Read and clear the errors of engine control unit, transmission, ABS and all-wheel drive
Dimming*: Your display automatically dims along with the instrument panel

Different views

Configure your own page or choose from several predefined views:

The display is delivered with predefined sample pages
Creation of own pages possible and wished
Up to ten pages possible
20 different widget types (e.g. sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
Widgets can be scaled in size and positioned using drag and drop
Colours of the widgets fully adjustable
Up to 64 widgets per page

Display Setup Software - DSS

With the CANchecked DSS you can fully customize your display. With the integrated log viewer you can download and view log files. Furthermore, a Can-Logger is integrated. The heart is the integrated TRI Editor with which you can adjust the sensors (no matter if Can Bus or internal): Assign min-/max-values for warnings and change the names of your sensors.

Supported values

Many customers always ask: Which values can I get from my ECU. The answer: ALL.

We have reverse-engineered the data for most engines here and can offer in-depth data. Our display supports Can Bus data query (UDS, TP2, manufacturer specific protocols) as well as data query via K-Line (ISO 9141).

By default, your display is delivered with predefined TRI/TRX files. In the files, all sensors are defined, which are queried. These are different from engine to engine. Here is an extract of what is possible:

Temperatures:

Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG-temperature.

Pressures:

Boost pressure, ambient pressure, fuel pressure pre-feed pump, rail pressure actual/target.

Lambda/mixture

Lambda value, injection time, short term lambda adjustment, long term lambda adjustment

Other

RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing in %, terminal 30 voltage, torque, gear, diesel specific values

If values are missing, they can be added later.

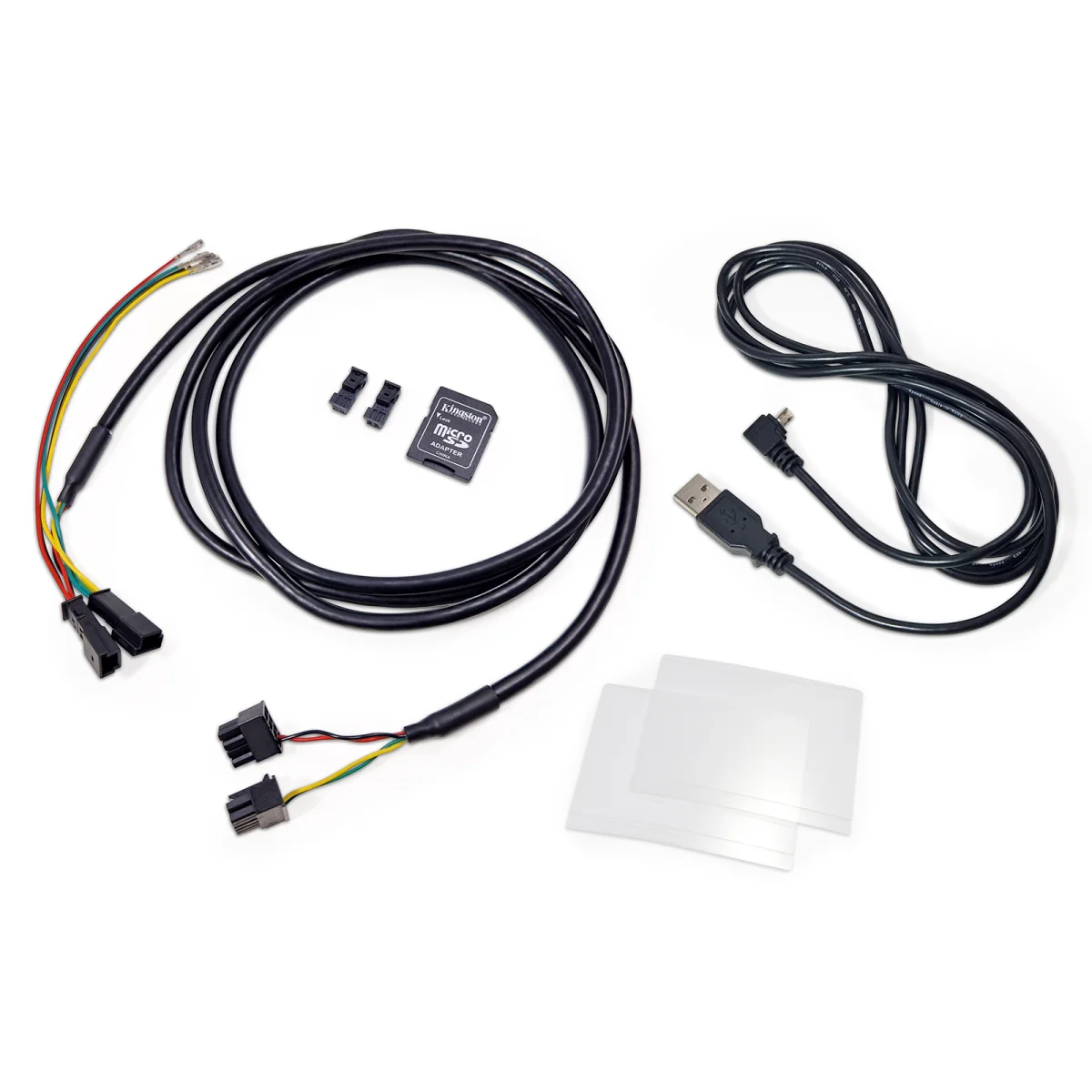

Scope of delivery

Included with every delivery

MFD32 Gen2 data display integrated in the ventilation insert for LHD vehicles
vehicle-specific connection cable
Quickstart Guide
USB data cable
SD card (pre-installed to the display)
SD card adapter
Display foil (to prevent reflections)

Connection and extension

Any sensors can be connected via the four analog inputs - we support linear 0-5V as well as NTC sensors.
Our in-house CANchecked sensors are stored in the TRI-/TRX-files by default and only need to be connected:

AIN1: Temperature sensor (NTC01)
AIN2: Transducer for exhaust gas temperature sensor type K (TCC01)
AIN3: Pressure sensor 0-10 Bar (FLP01)
AIN4: boost pressure sensor 0-5,5 Bar absolute (BST01)

For the connection you can use our pre-assembled AIN wiring harness.

Beside the analog sensors you can also connect our external shift light with eight LEDs. This can flash in different colors and the speed limits and colors can be configured directly on the display.

You connect the ethanol sensor directly to the display. You need a pullup resistor (10K) between 5V and the signal. Then you can view and log the ethanol content and temperature directly on the display.

Advanced functions

With the Math-Channels you can calculate sensors with each other. The User-Table gives you the possibility to generate further sensors with 2D or 3D maps.
